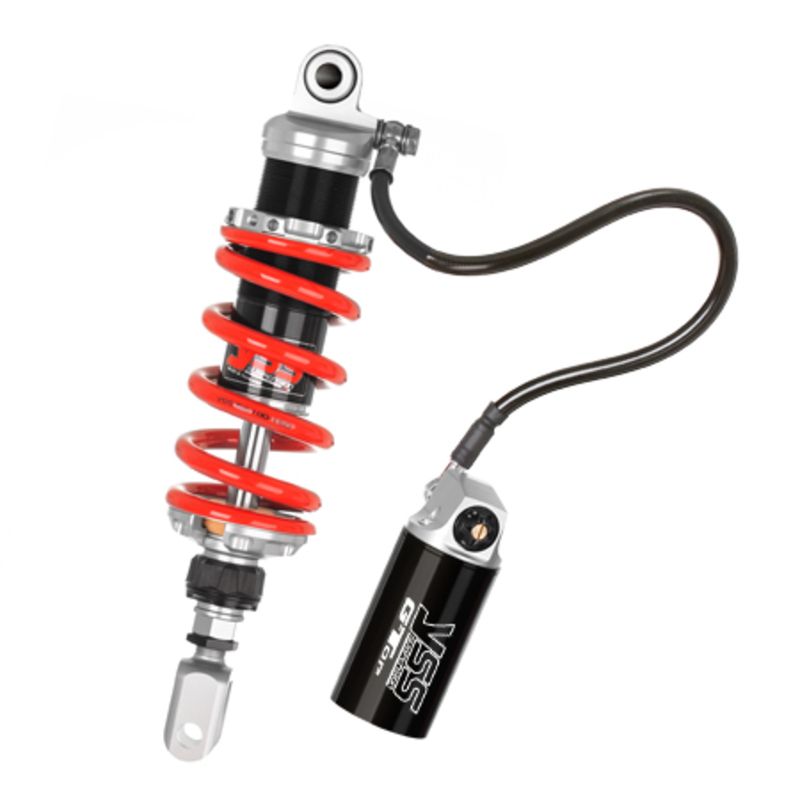

Amortisseur arrière YSS Mono

Product Information: Mono Shock Absorber with Separate Reservoir - Top Line

The mono shock absorber features DE CARBON technology with a separate reservoir. It is part of the Top Line series and has ABE approval.

Adjustment Options:

• Mechanical spring preload
• Rebound adjustment
• Compression adjustment
• Height adjustment

Technical Specifications:

• Piston Diameter: 45 mm
• Piston Rod Diameter: 16 mm
• Shock Absorber Length: 330 mm
• Height Adjustment: +/- 5 mm
• Length Adjustment Range: 325-335 mm
• Top Mounting: 12 mm
• Bottom Mounting: 30 mm

Spring Characteristics:

• Inner Diameter: 56 mm
• Spring Rate: 100 mm
• Spring Length: 150 mm
